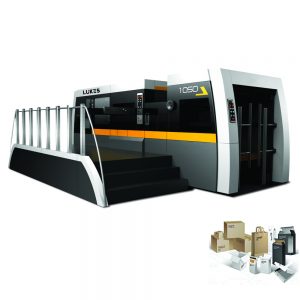

Auto Flatbed Die Cutting Machine Maintenance Troubleshooting

Auto Flatbed Die Cutting Machine produces a lot of waste paper edges and paper wool during work. If you are not careful, it will stray into the chain drive part, die cutting platform, and block the photoelectric detection head, etc., causing failure. Therefore, Auto Flatbed Die Cutting Machine cleans work. Be sure to put it first.

Auto Flatbed Die Cutting Machine must have good lubrication and cooling when working at high speed. Be sure to choose a high quality oil (such as shell Omara 100) to protect the main drive of the die cutting machine. In addition, there is an intermittent mechanism box on the transmission side of the machine (intermittent mechanism of the ternary lobe), the oil used here is more viscous (such as shell Omara 220). After the new machine starts running, the main transmission parts and the inter mechanism box should be replaced after 3 months, and the cycle should be replaced once a year. The oil used for other parts is the same as that of general printing machines.

Common Troubleshooting:

1) Mechanical failure

Auto Flatbed Die Cutting Machine often has the problem of tilting of the moving platform, which is mostly caused by foreign objects falling into the die cutting part. Generally, first check the position of the wedge block under the shaft, and at the same time rotate the moving platform to the upper limit, monitor its relative position with the upper static platform, and ensure that the four corners of the platform are between the upper static platform (where the die cutting blade is clamped), etc. distance, this will solve the problem.

2) Electrical failure

Because the central control of Auto Flatbed Die Cutting Machine adopts PLC control, the main detection points, electrical switches and output actions are all commanded by PLC, and its internal program is a ladder logic diagram, so when there is an electrical problem, maintenance personnel must first read it. Understand the ladder logic diagram, and then find the cause of the failure is simple.

Whether it is an Auto Flatbed Die Cutting Machine or a semi automatic flatbed die cutting machine, professionals are required for refueling and maintenance. It is necessary to understand the structure and performance of the machine, so that a machine can be maintained well, which can extend the use of the machine. life, improve production efficiency; secondly, it can reduce maintenance costs.

Shandong Lukes Machinery is one of the leading brands of Auto Flatbed Die Cutting Machine in China. It has a professional technical team and after sales service staff to serve you 24 hours a day.
If you are interested in Auto Flatbed Die Cutting Machine, welcome to contact me.
