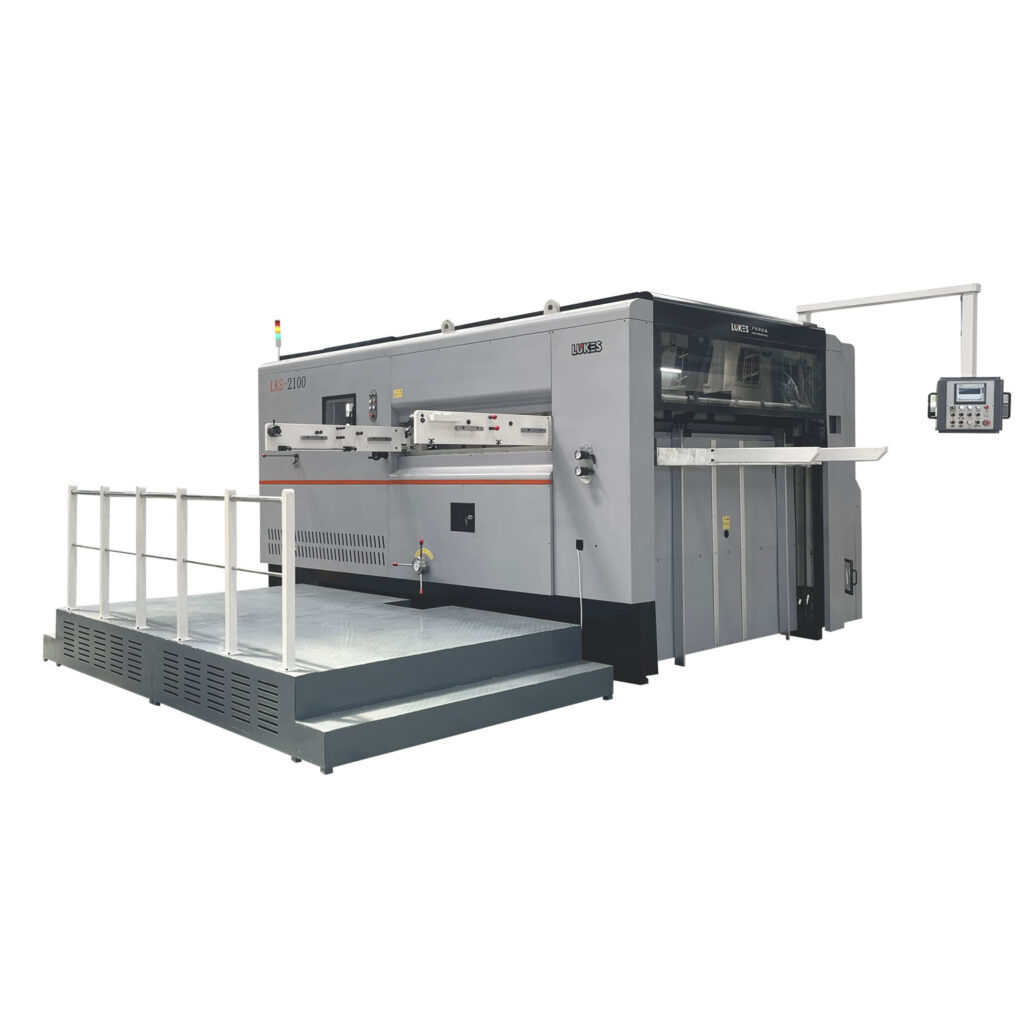

Semi automatic die cutting machine ordered by UK customers
This 2100 semi automatic die cutting machine is ordered by British customers, we add more safety devices on the basis of the original machine.（Such as: die cutting section safety door, locking device, and more infrared sensing devices.）
2100 semi automatic die cutting machine is mainly composed of 6 parts, namely: feed section, die cutting section, electical control section, main driving system, main chain drive, delivery section. This one ordered by the customer does not have the optional stripping function. Below I will describe the advantages and features of these six components of Lukes Machinery.
1. Feed Section
It can be used from whiteboard paper to 9mm corrugated paper, which can meet various paper sizes and has a wide range of applications.
2. Die Cutting Section
Imported components are used for more precise control. Bearings and electrical parts are selected from well known foreign brands, with reliable positioning, precise control, and a high degree of standardization and generalization of die cutting to meet the needs of cost reduction and mass production.
3.Electical Control Section
PLC control, safer and more reliable. The electronic control system is controlled by PLC, equipped with various safety protection devices, equipped with fault alarm, and automatically shut down to truly realize human machine safety.
4.Main Driving System
Bearing connection, more stable operation. The main drive adopts a worm gear and a specially designed crankshaft connecting rod mechanism, which is connected in the form of a bearing bush, which reduces the movement gap, avoids the impact of the worm gear and worm, and has a balanced operation and large die cutting pressure.
5.Main Chain Drive
The main chain adopts high quality heavy duty high precision transmission chain, the chain length error is extremely small, and the tensile strength and wear resistance are extremely high.
6. Delivery Section
There are two delivery methods for a wider choice. There are two delivery methods: pallet and trolley, which greatly improves work efficiency. Photoelectric detection device is safe and reliable, ensuring fast and stable delivery.
The technical parameters of the 2100 semi automatic die cutting machine are as follows:
| Max paper size: | 2100×1520mm |
| Min paper size: | 650×550 mm |
| Max die cutting size: | 2080×1510mm |
| Max die cutting pressure: | 300× 10^4N |
| Machinable Cardboard Thickness: | Corrugated cardboard 1 9mm |
| Die cutting accuracy: | ±0.5 mm |
| Mechanical maximum speed: | 3000 s/h |
| Die cutting height: | 23.8 mm |
| Pressure adjustment range: | ±1mm |
| Min front scrap size: | 8mm |
| Max wood formwork size: | 2100×1520 mm |
| Total power: | 24.2kW |
| Dimensions: | 7800×6000 ×2650 mm |
| Total Weight: | 29T |
| control method: | PLC |
| Adjust the system: | Variable frequency stepless speed regulation |
