LKS-1300ED(Q) Semi Automatic Die Cutting Machine with Feed Table

Product Description

LKS-1300ED(Q) Semi Auto Die Cutting Machine with Feed Table:

This model is very suit for offset carton package which has cardboard/mono carton/duplex board and also corrugated board. (one machine can do all of your board)

Colorful offset printing carton has high request for cut precision.

Semi auto die cutting machine with feed table can adjust the feed precision to ensure arrived correct gripper bar. sometimes, if operator feed the sheet slop, the side lay can automatic adjustment.

Semi Auto Die Cutting Machine with Feed Table Features:

1. Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.
2. Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately and reduce the occurrence of failure rate.
3. The whole machine all uses SKF\NSK imported original bearing.
4. The whole machine uses original parts imported from France Schneider,Japanese OMRON.
5. Key parts of gripper bars are imported from Japan.
6. The craft shaft is adopts Germany Ni-Cr-Mo metal steel, with high precision and will never deforms.
7. Use the centerline positioning system to realize fast plate changing of worksheet.
8. Equiped with Dayuan first-developed pressure servo control device, ensure fast and smooth adjusting of die cutting pressure.
9. Equip with touch-screen operation interface in both Chinese and English.
10. All adopt Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.
11. Main motor from Siemens,ensure stable operation.

Semi Auto Die Cutting Machine

Components

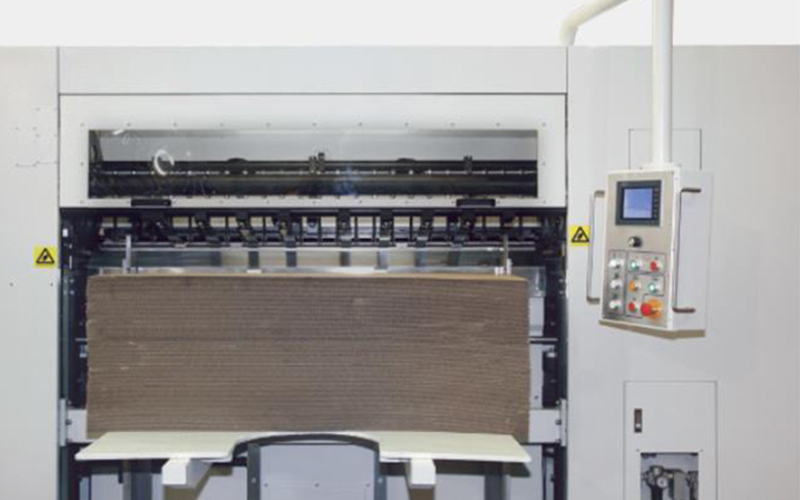

Feed section

· Automatic feeder lift to maintain pile height for manually sheet feeding.
· Fork type lift table build with side guide for centering position.

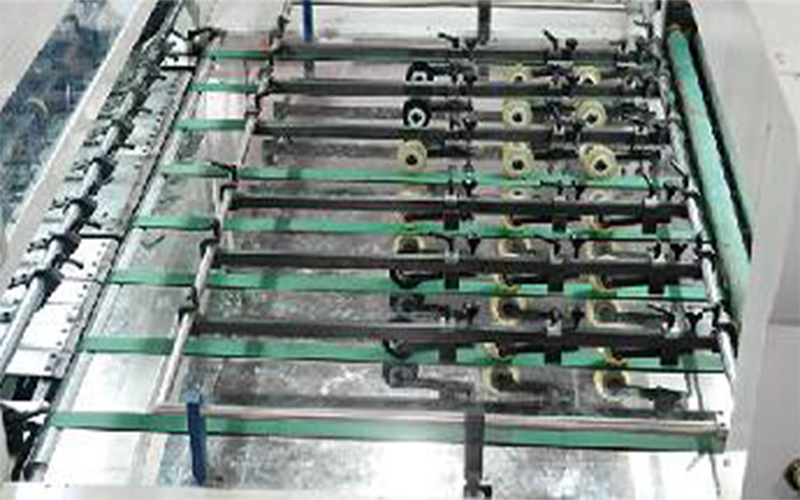

Feed Table

· Front gauge detection to ensure arrival rate of paper.
· Adopt left/right dual-push/pull gauge way to meet different printing and alignment requirements.

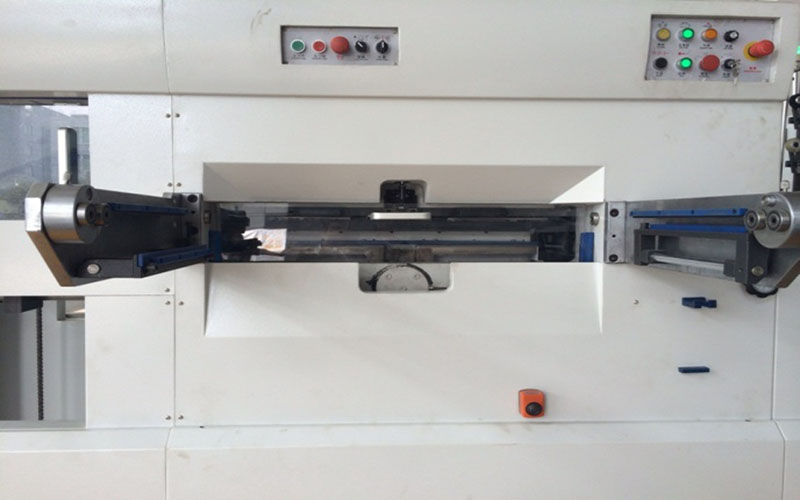

Die Cutting Section

· C-enter line system for quickly change of die and short set up time.
· Pneumatic locked device. Safety and fast.
· Completed lost sheet control throughout the entire machine.

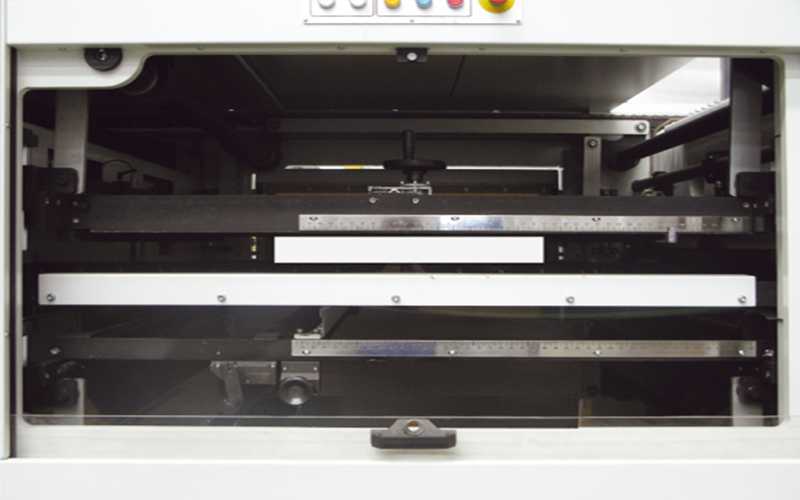

Stripping Section

· Center line system for quick stripping die set up.
· Heavy duty double action stripping system to ensure positive stripping.

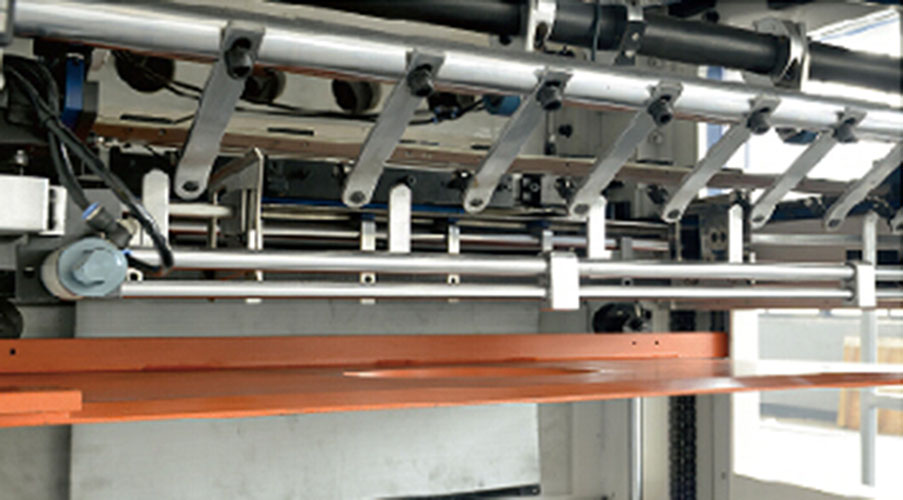

Delivery Section

· Automatic lift control system of paper collection platform.
· Paper collection photoelectric device to ensure neat paper collection.

Specificattons

Model:
Max. sheet size:
Min. sheet size:
Max. die cutting size:
Max. working speed:
Electrical power:
Paper range:
Max. working pressure:
Machine weight:
Machine dimension B:
Machine dimension BC:

LKS1300ED(Q)
1290*940mm
550*480mm
1280*930mm
4000 sheet/hour
13.5KW
cardboard≥2250gsm Corrugated≤7mm
300 ton
15 ton
6100*4400*2300mm
7423*4400*2300mm
