LKS1650G Fully Automatic Die Cutting Machine

> Videos

> Components

> Specificattons

> PRODUCT LINES

Product Description

Model: LKS1650G Fully Automatic Die Cutting Machine

Characteristics:

1. Fully automatic die cutting machine which adopts high technology with gear main drive can run max speed 5500s/h, shorter preparation process and perfect quality, which professional applies to all kinds of corrugated board.
2. Paper hold down pressing plate is adjustable to adapt warped board, no double sheets to ensure continuous and smooth feeding.
3. Front gauge non-stop back and forth adjustable to accommodate variation in gripper margin.
4. Main drive adopts high quality precision worm gear and toggle system.
5. Centreline system for quick stripping tool set up and change over, compatiable with centreline Il.
6. Front edge waste removal system removes and transfers waste edge outside the machine visa conveyor belt
7. Counter can set based on your products stack request, which will be improve working efficiency.
8. Motorized upper frame suspending hoister.

Introduction：

Lukes Machinery is one of the leading supplier manufacturers of 1650G fully automatic die cutting machine in China, Our factory high quality fully automatic die cutting machine at competitive price for sale.



fully automatic die cutting machine



Videos

Components

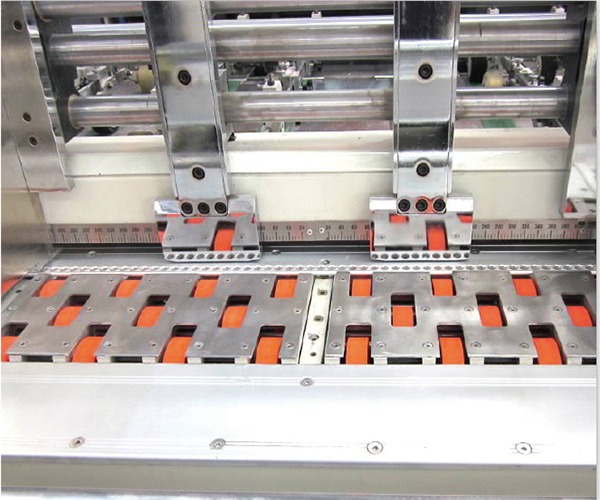

Lead Edge Feeder

Lead Edge Feeder

1.Double servo motor to ensure high precision feed sheet.
2.Paper hold down pressing plate is adjustable to adapt warped board, no double sheets to ensure continuous and smooth feeding.

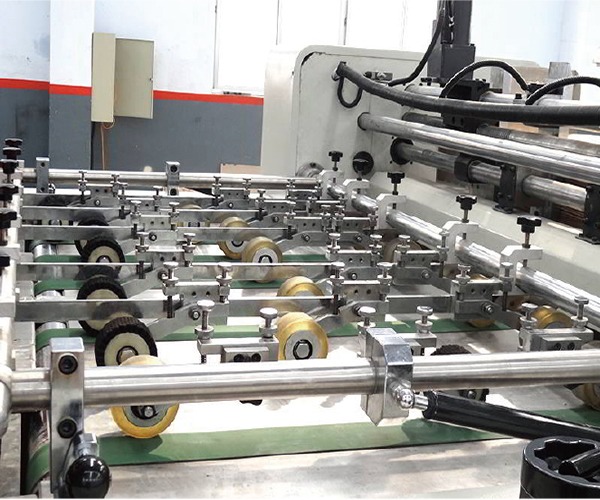

Feed Table

Feed Table

1.Selectable left and right side push push lays to ensure accurate alignment.
2.Front gauge non-stop back and forth adjustable to accommodate variation in gripper margin.

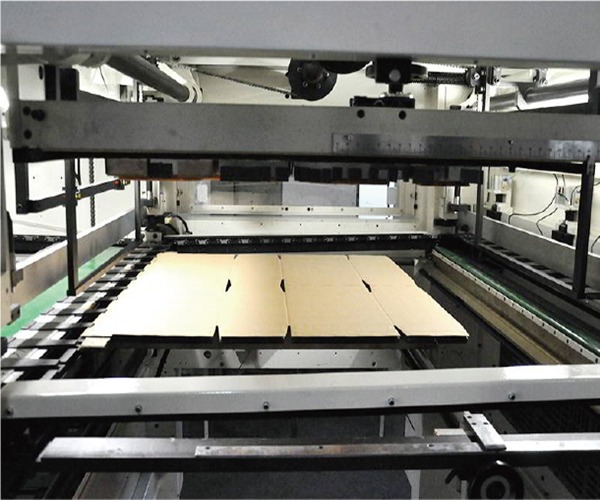

Die Cutting Section

Die Cutting Section

1.Centreline system to ensure fast install die plate.
2.Air cushion undemeath the cutting plate(7+2)for easy sliding through.
3.Main drive adopts high quality precision worm gear and toggle system.

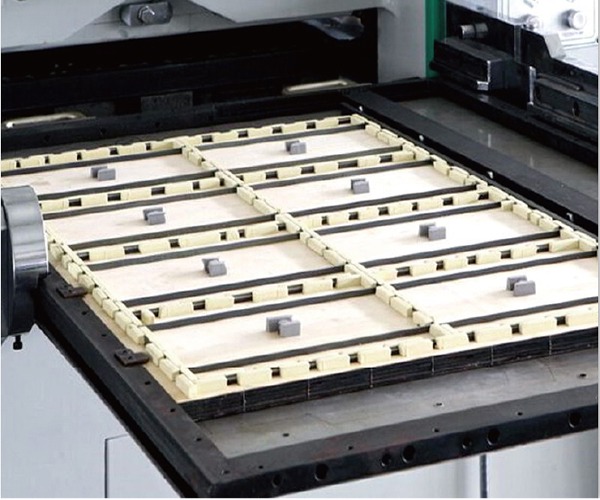

Stpipping Section

Stpipping Section

1.Adopts 2 frame (male and female) stripping plate system which is very suit for thickness corrugated sheet.
2.Centreline system for quick stripping tool set up and change over, compatiable with centreline ll.
3.Front edge waste removal system removes and transfers waste edge outside the machine visa conveyor belt.

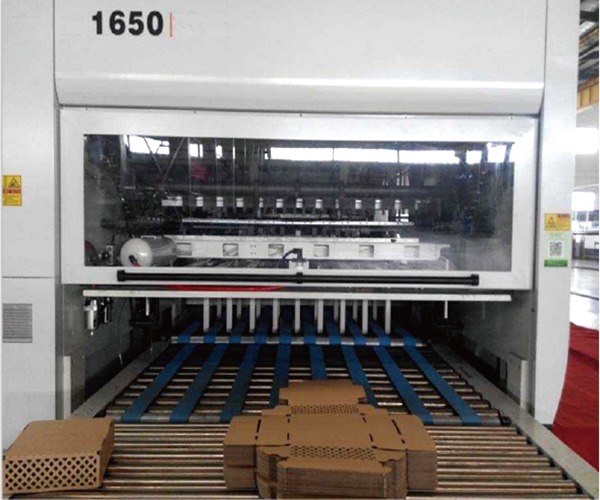

Delivery Section

Delivery Section

1.Non-stop batch counter delivery, photocell controlled.ensures board delivered accurately in selected batch count in a uniformed stack.
2.Counter can set based on your products stack request, which will be improve working efficiency.
3.Motorized upper frame suspending hoister.

Specificattons

Name：

Model：

Max.sheet Size：

Min.sheet Size：

Max.Die-Cutting Size：

Max.Mechanical Speed：

Min.gripper waste：

Die cutting precision：

Electrical Power：

Max.Die-Cutting Pressure：

Gross Weight：

Stock range：

Inner chase size：

Dimension：

Fully Automatic Die Cutting Machine

LKS1650G

1650×1200mm

650×550mm

1630×1180mm

5500s/h (depand on die and sheet’s conditions)

Min.gripper waste

± 0.5mm

380V.50HZ, 3-Phase

450tons

38000KGS

E.B.C.A and AB flute corrugated board ≤ 9mm

1660x1210mm

11200x5560x2550mm( include working platform)
