Product Description

Model: 1850B Auto Die Cutting Machine

Advantage:

1850B Auto Die Cutting Machine offers strong adaptability and high precision. It works well with all kinds of cardboard and corrugated paper, and keeps accurate die-cutting results at all times. Besides, the Auto Die Cutting Machine is easy to operate and maintain. It runs steadily with digital data display, so you can fix faults quickly. Meanwhile, the 1850B Auto Die Cutting Machine maintains stable working performance and full safety protection. It supports stepless speed control and comes with complete safety parts for daily use.

In addition, the 1850B auto die cutting machine supports flexible processing and reduces material waste. It meets diverse production needs, and allows reusing misplaced paper to cut running costs. Moreover, it features a sturdy, durable frame structure. Premium construction materials extend service life and improve overall working efficiency. Finally, this unit adopts intelligent control with imported PLC and touch screen. It simplifies daily adjustments and enables automatic fault monitoring. The machine also offers optional full stripping as an upgraded accessory.

Introduction:

1850B Automatic Die Cutting Machine is self-developed in our factory. It integrates the strengths of global mainstream equipment, and perfectly fits die cutting for high-end color boxes and cartons. With mature technology and robust structure, it meets high-precision and high-speed packaging production requirements, and supports optional full stripping for wider application.

We provide four complete models of automatic flat bed die cutters, including 1300B, 1450B, 1620B and 1850B for your selection.

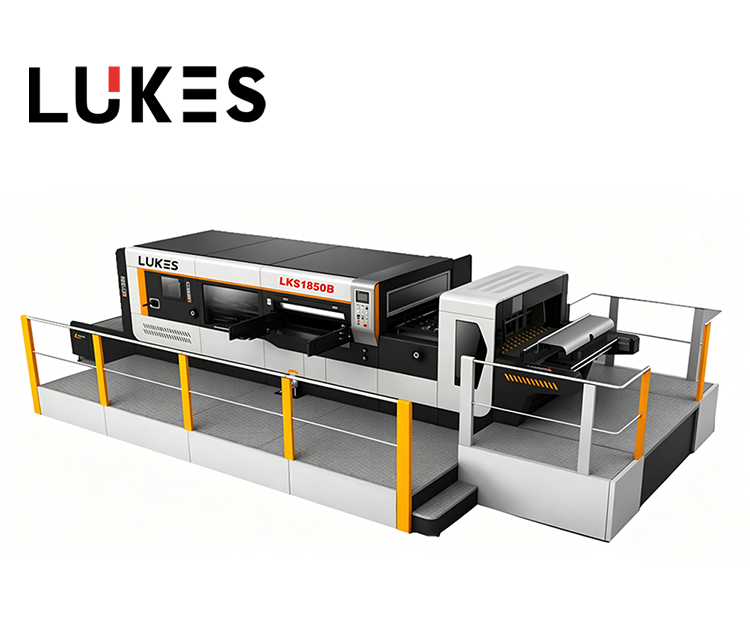

1850B Auto Die Cutting Machine.png-1

Videos

Components

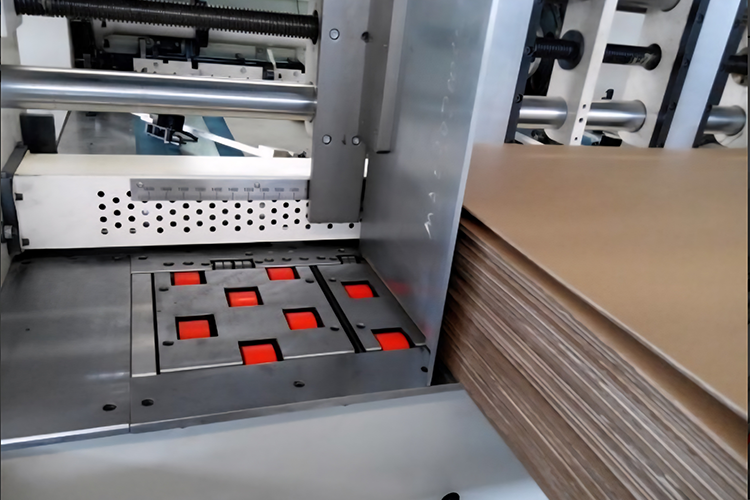

Feeding section

■ Lead edge feeder allows consistent and precise feeding of wide range corrugated board.

■ Vacuum suction adjustment achieved through inverter for wide range from F flute to 5ply 7ply corrugated board

■ double servo system to control feeding with high precision and smooth

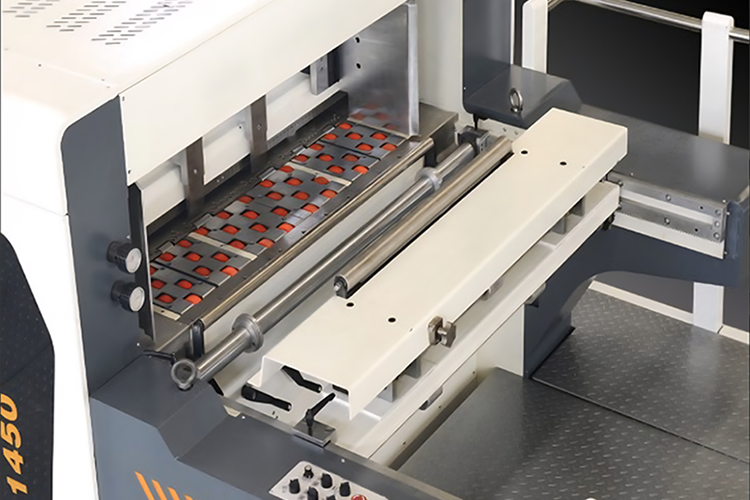

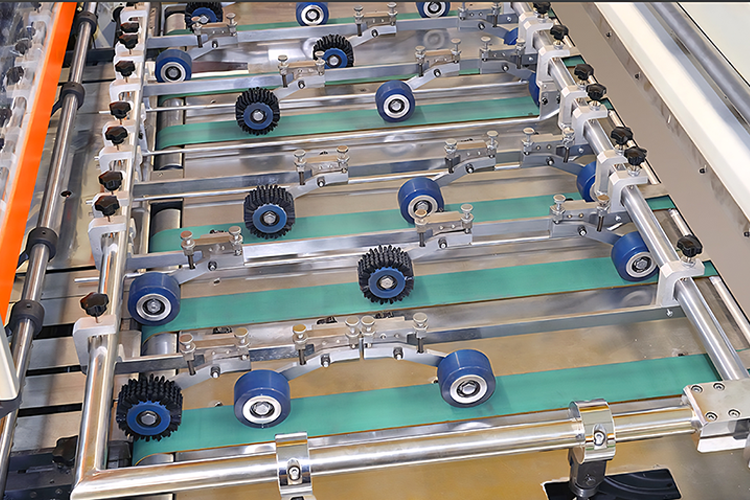

Feed Table

■ Left and right side push lays to ensure accurate alignment and power registration.

■ Adjustable rubber wheels achieve precise paper feeding.

■Adopt the servo motor system to control the speed of conveyor belt.

■One button to control frame to ensure operate easily

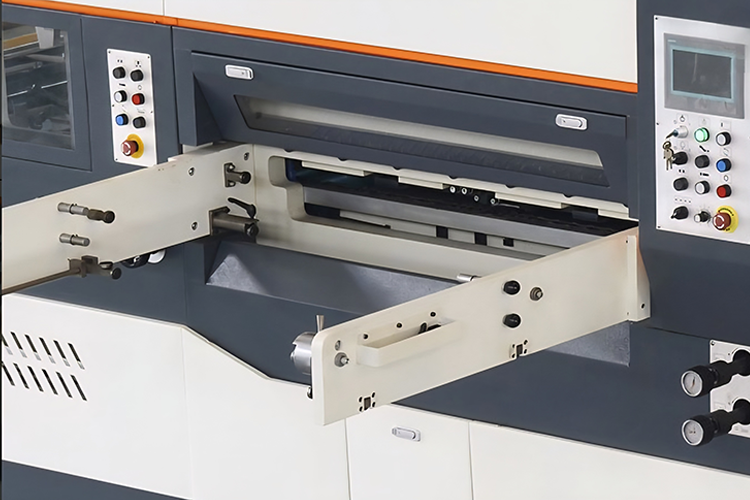

Die cutting section

■ The reliable overload protective mechanism can make the driving and driven parts separated automatically when accident overload occurs.
■ The unique die cutting frame can prevent the die cutting plate dropping and separating effectively.
■ Centerline system and pneumatic lock-up system for quick cutting die set up and job change over.
■ Human machine interface for monitoring machine’s working situation, easy operation and malfunctions diagnosis.
■ Cam indexer and heavy duty pneumatic clutch with overload protection for stable, accurate and safe machine running.

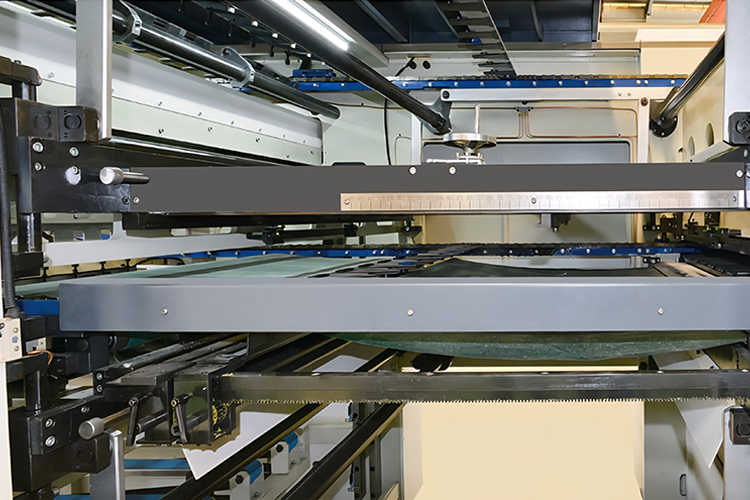

Stripping section

■Double stripping function
■Male/female stripping plate for different stripping jobs.
■Centerline system for quick stripping die set up and job change.
■Front waste separator to achieve full stripping and front waste transferred to the machine drive side by conveyor belt.
■Adopt electric control hoisting device,can strip four sides and middle parts automatically.

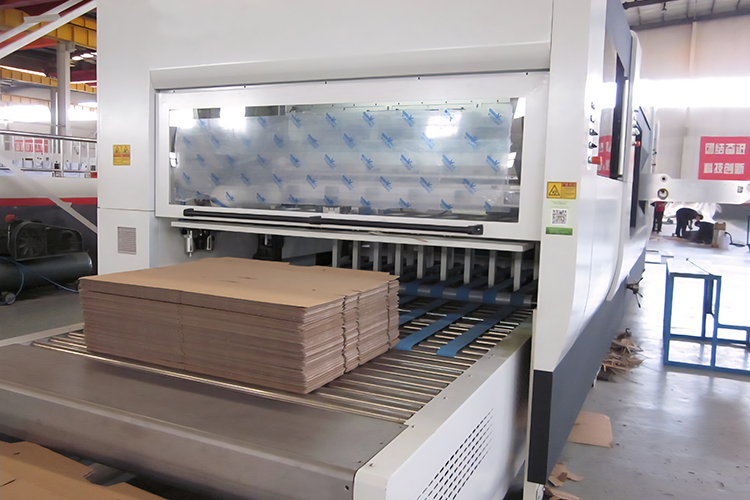

Delivery Section

■Adopt photoelectric detection to insure the smooth and steady delivery.

■Non-stop delivery system.Pallet delivery was option.

■Delivery control panel with icons for easy operation.

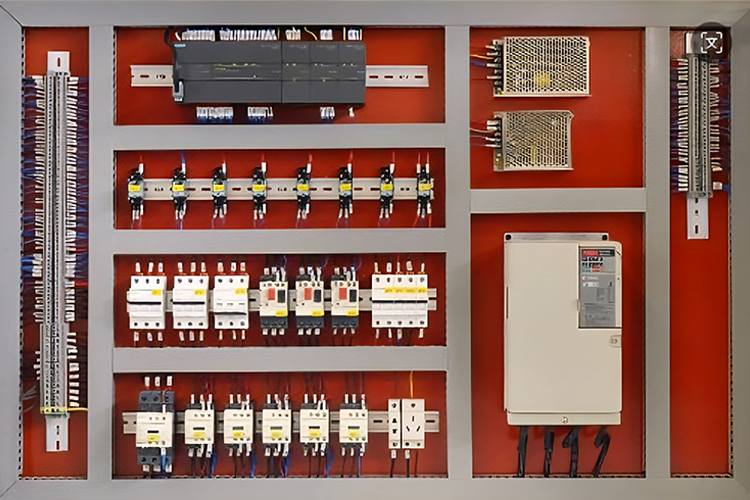

Electrical Control Section

■Adopts electrical components of world famous brands for better performance and in time and local after-sale-service and maintenance.

■Siemens’s latest PLC technology to ensure safe and trouble free running Specification

Specificattons

Max.sheet Size

Min.sheet Size

Max .Die-Cutting Size

Max.Mechanical Speed

Min.gripper waste

cutting rule height:

electrical power:

die cutting precision:

Total Power

Max .Die-Cutting Pressure

Gross Weight

pressure adjusting range:

stock range

Inner chase size

dimension

1880x1420mm

650x550mm

1850x1400mm

3500s/h

12mm

23.8mm

32 kw

±0.5mm

380V.50HZ,3-Phase

450t

36t

±1mm

corrugated board 1-9mm,

1890x1430mm

10695x5848x2677 0mm
