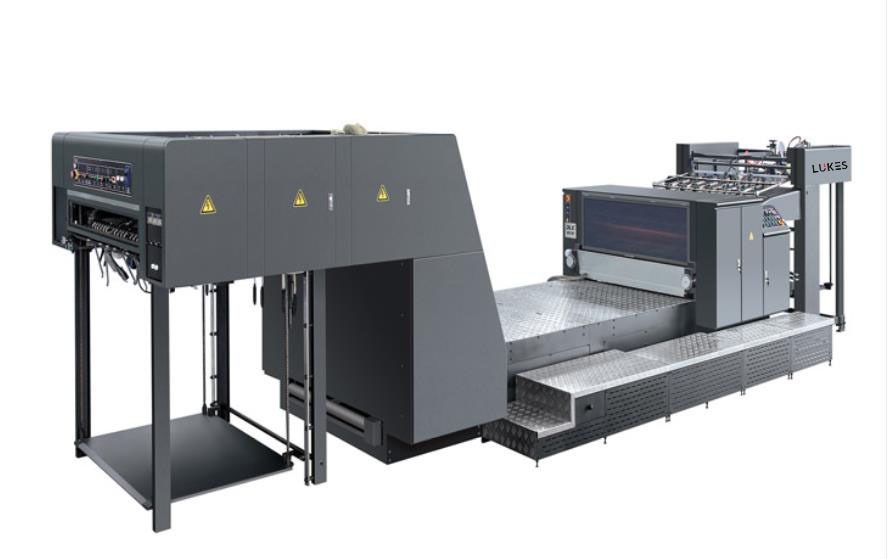

1300 Automatic spot uv varnish coating machine

Product Description

Automatic spot uv varnish coating machine is used for both full and spot varnishing on light and thick paper with accurate and even spot coating register by blanket or flexo plate, it is suitable for spot or full coating on words and graphics in books, advertisement sheet, color paper board to enhance its dimensional quality. Many safeguards and human- based operating procedures ensure user safety and convenience. Imported elements for main bearing and electrical components are adopted in the machine.

For more information consultation: info@sdlukes.com

Components

Feeding section

Pre-stack system: photocell paper position . Optional: non-stop feeding unit

Varnishing main parts

Gripper chain conveying system, rubber roller coating structure , automatic lubrication system

Optional: ceramic anilox roller coating system with different LPI

Heating and drying system

With one row drying system. Optional : Lengthened tunnel, one more row heating and drying system.

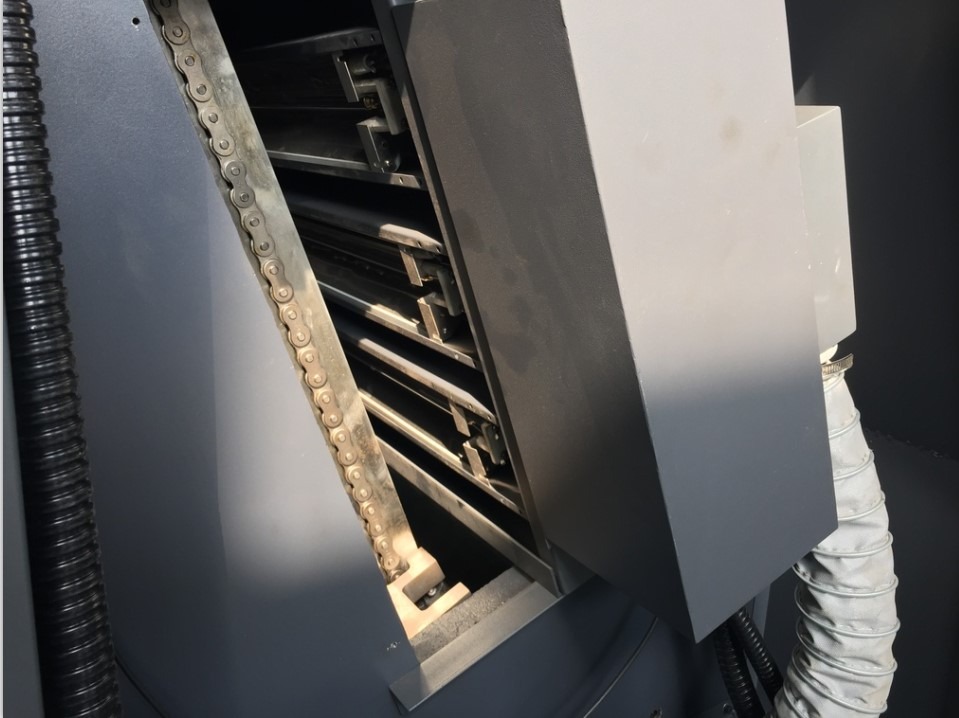

UV curing system

Full or half lamp shift. Optional: stepless infinitely adjustable-speed power unit. LED UV lamp.

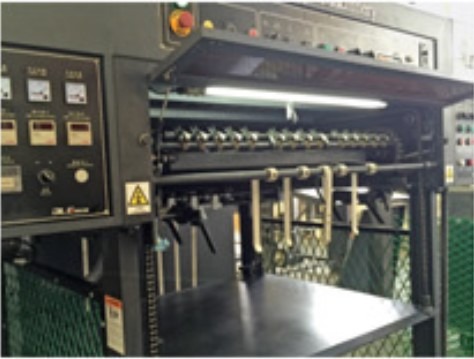

delivery section

Air pressure delivery . optional: air conditioner cooling unit. Non-stop delivery

Specificattons

Max sheet size 800×1285mm
Min sheet size 340×440mm
Max coating size 800×1260mm
Paper weight 80-600g/m²
Max speed(UV coating) 5000sph
Total electric consumption 51kw
UV lamp (NO.×power) 3×9.75kw
IR lamp(optional,NO.×power) 15×2kw
weight 9.3T
Overall Dimensions 7600×2983×1950mm
