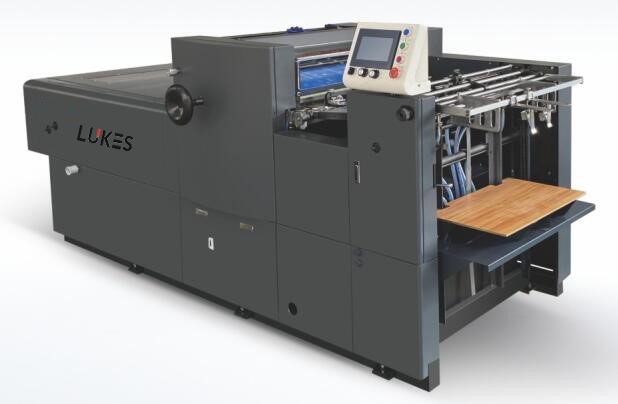

620Automatic Micro Spot UV coating machine

Product Description

This Automatic Micro Spot UV coating machine is used for both flood and spot coating with both UV or water-based varnish on light or thick paper with accurate and even spot coating register. It is suitable for spot or full coating on words and graphics in books, advertisement sheets, color paperboard to enhance its dimensional quality and surface protection. Integrated control with PLC can provide easy operation & trouble shot during production. Fully automatic working process from feeding to delivery. CE safety requirements is considered and widely used in the machine design. Well designed inner circulation frame can prevent leakage of UV ray & exhausted air, which will satisfy the environmental requirement. Famous international brand of components like bearing, electrical parts are used in the critical part. With its advantage of small and smart Design, easy moving and operation, accurate coating , it is suitable for small printing house. It is also much recommended to be sued as a post printing equipment within a digital printing solution.

For more information consultation: info@sdlukes.com


Max sheet size 450×620mm
Min sheet size 210×260mm
Max coating size 440×605mm
Paper weight 80-350g/m²
Max speed(UV coating) 5500p/h
Total power 16kw
UV lamp power 5.6kw×2
IR lamp power 1.8kw×2
Weight 1350kg
Overall Dimensions 3000×1100×1400
Note: the speed is based on the paper size and paper weight.
