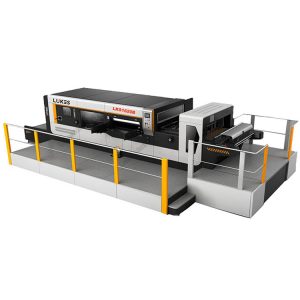

Model: 1620 Automatic Die Cutting Machine of Corrugated
Most of the automatic die cutting machine of corrugated choose the leading edge feeding type. Corrugated cardboard in larger size is heavier, and this method is more suitable for corrugated cardboard.
It is specially suitable for die-cutting of large-width corrugated cardboard and color-coated corrugated cardboard, and is equipped with the latest servo-driven paper feeder.
Wide range of paper feeding, precise die cutting from E to AB corrugated board.

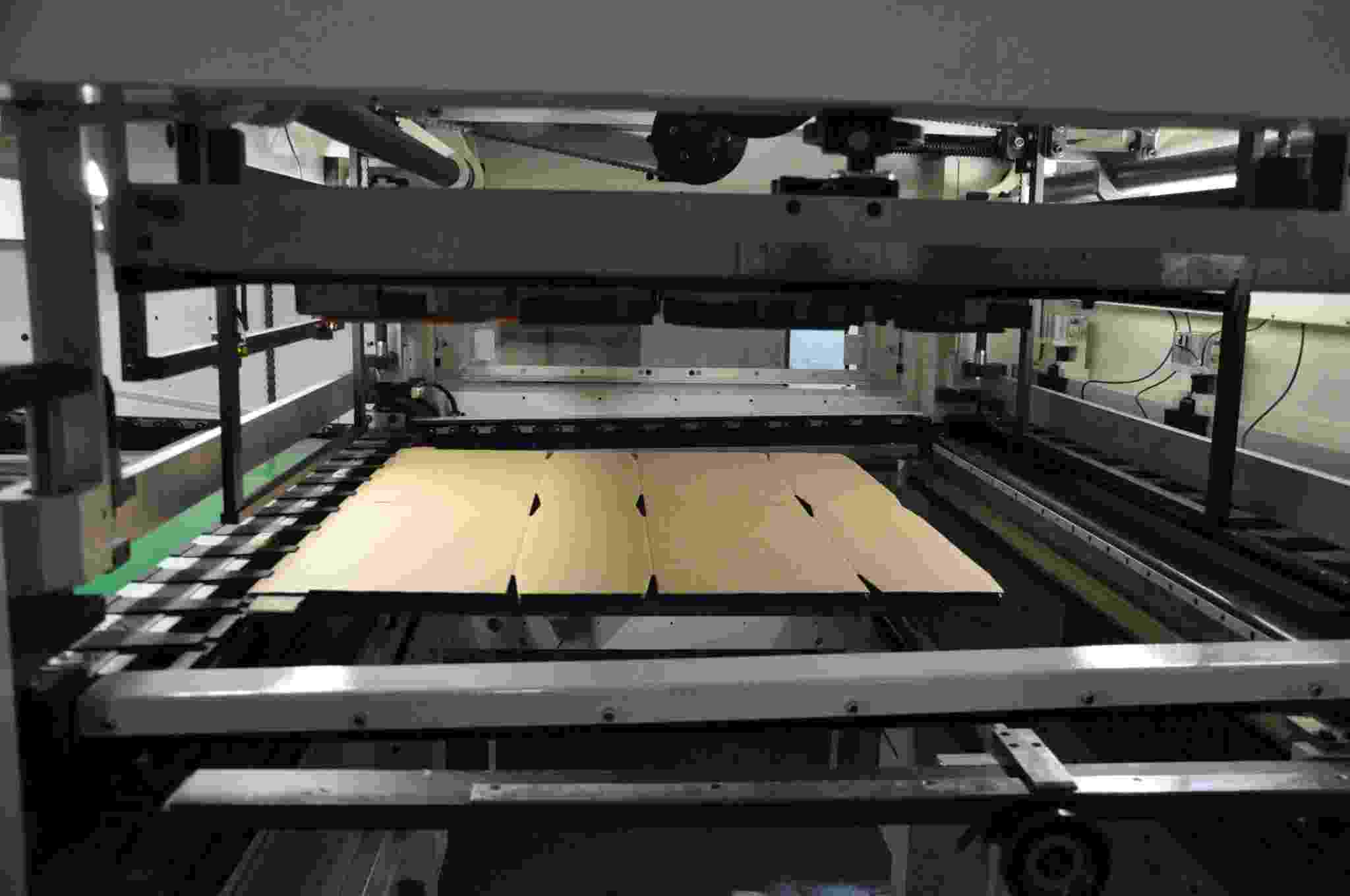

Stripping system and gripper edge waste removal device for complete waste removal.
Shandong Lukes Machinery is one of the leading supplier manufacturers of corrugated automatic die cutting machine in China, our factory high quality automatic die cutting machine at competitive price for sale.
Max. sheet Size 1650x1210mm
Min. sheet Size 650x550mm
Max .Die-Cutting Size 1620x1190mm
Max. Mechanical Speed 3600s/h
Min. gripper waste 9mm
cutting rule height: 23.8mm
electrical power: 25.5 kw
die cutting precision: ± 0.5mm
Total Power 380V.50HZ, 3-Phase
Max .Die-Cutting Pressure 350t
Gross Weight 30t
pressure adjusting range: ± 1mm
stock range corrugated board 1-8mm,
Inner chase size 1650x1220mm
dimension 6620x5330x2550mm
