PVC/Fiber/Resin Based Creasing Matrix

Product Description

Our elephant creasing matrix is available in over 50 countries around the world. Cost effective creasing matrix made of plastic, cardboard, pink fiber and resin for a variety of die cutting jobs.
It is made from modern materials with features of long lasting and accurate location, it is effective and reliable matrix for die cutting and creasing, both save time and cost, it will bring you more easy die cutting job.

Feature:

1. New and strong adhesive removes cleanly from the plate after use, will not move about during die cutting jobs.
2. Patented adhesive free locator bonding leaves no sticky residue, resulting in better quality & quicker creases.
3. World’s most advanced creasing matrix made from pressboard long-run job with average punching times from 30000~50000.
4. Low profile chamfer – board flows freely over the matrix; board marking is reduced.
5. It is extremely durable and accurate and provides benefits in time and cost.
6. Competitive price with high quality.
7. Customized size and specification /OEM and also design package are available as MOQ Quantity.
For more information, please contact: 008615589650597.

Videos

Components

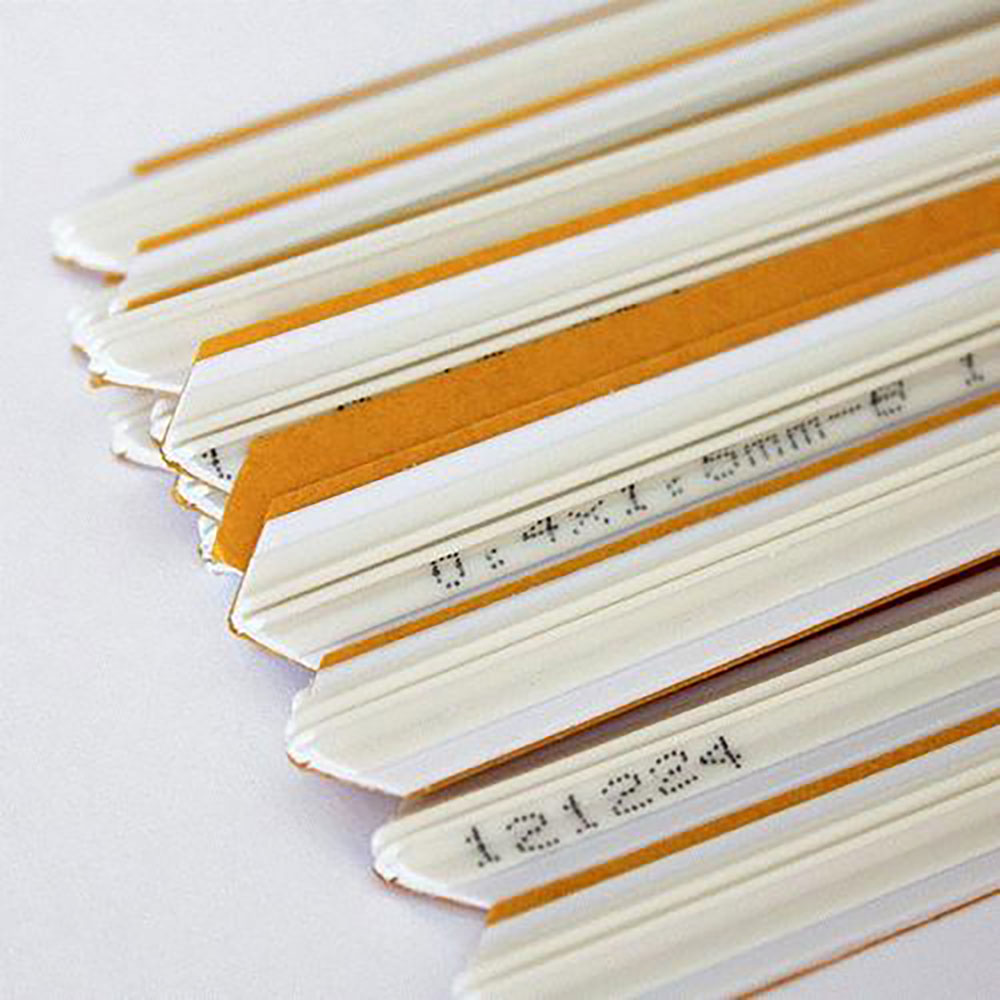

Creasing Matrix (China finger tape and glue)

Type: Standard/Narrow/Off center/Double
Material: PVC base with plastic shoulder
Punching Time: 10,000-30,000 times
Application: Developed for small print runs
Packing: 70cm/pcs, 48pcs/box, 25-30boxes/carton

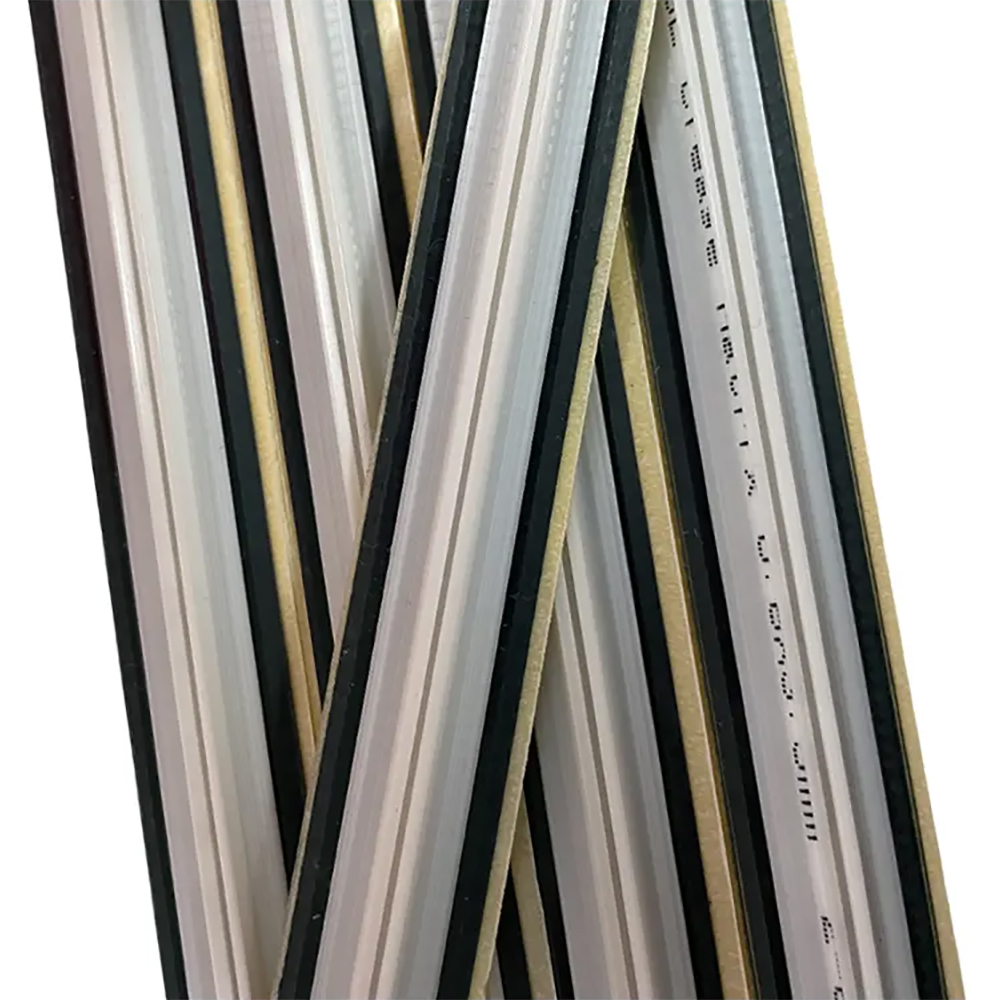

Creasing Matrix(with imported finger tape and glue from U.K.)

Type: Standard/Narrow/Off center/Double
Material: PVC base with plastic shoulder, Raw materials imported from the UK are used.
Punching Time: 30,000-50,000 times
Application: Developed for medium print runs
Packing: 70cm/pcs, 48pcs/box, 25-30boxes/carton

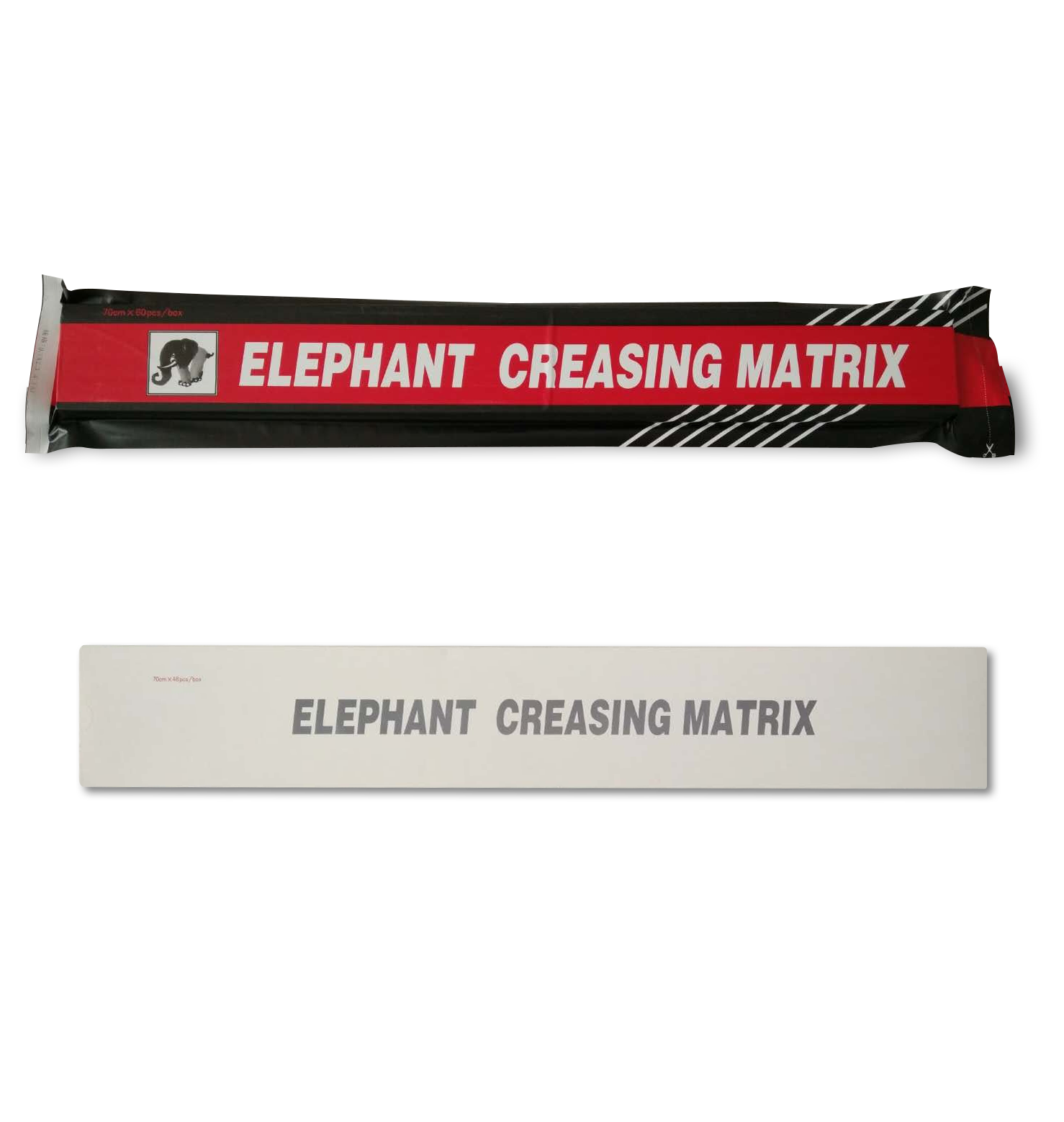

Elephant Creasing Matrix (with imported finger tape and glue from U.K.)

Type: Standard/Narrow/Off center/Double
Material: PVC base with plastic shoulder, Raw materials imported from the UK are used.
Punching Time: 30,000-50,000 times
Application: Developed for medium print runs
Packing: 70cm/pcs, 60pcs/bag, 20-25boxes/carton

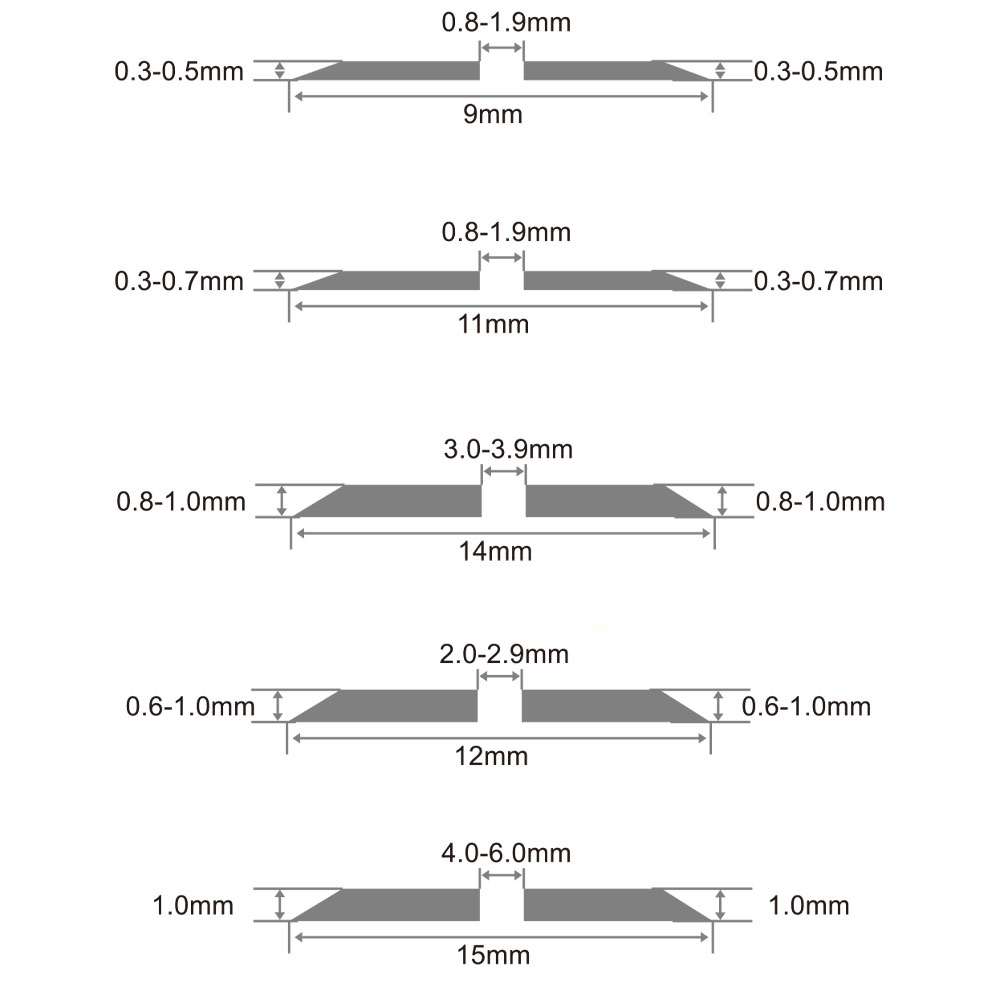

Standard/Narrow/Off center/Double

If you need recommended size, please contact whatsapp: 008615589650597.

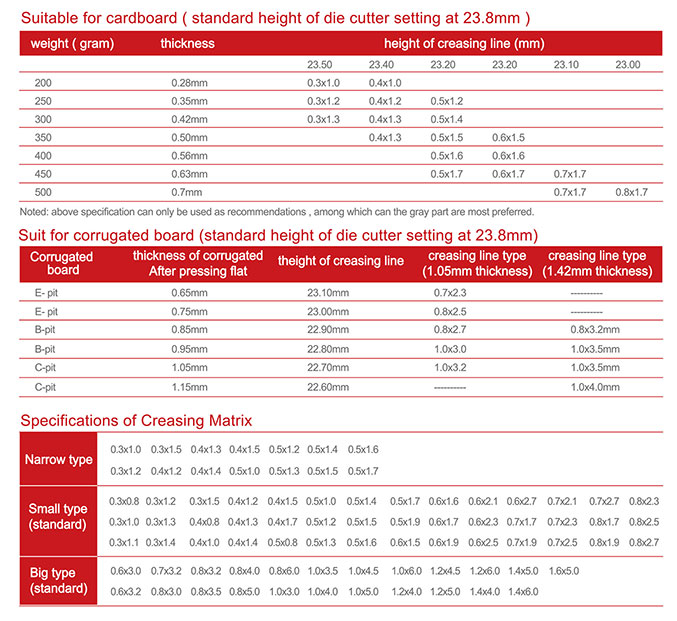

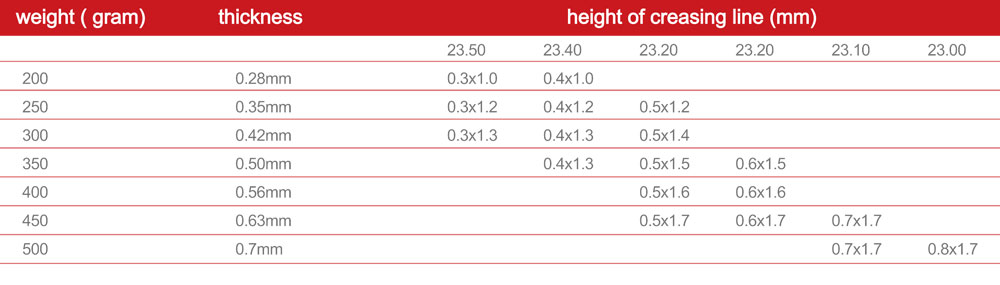

Dimensions Suitable For Cardboard

(standard height of die cutter setting at 23.8mm)

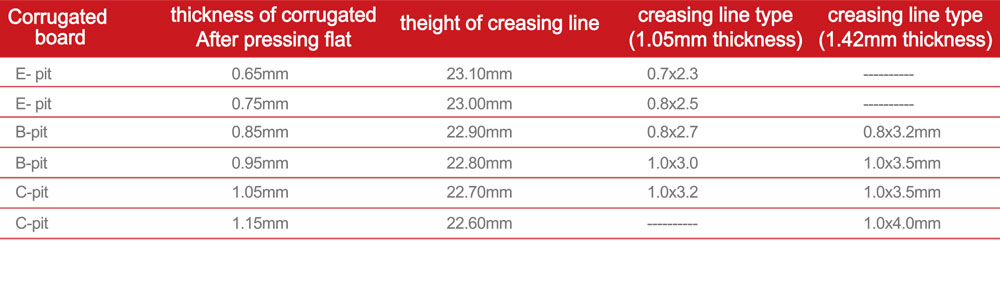

Dimensions Suitable For Corrugated Board

(standard height of die cutter setting at 23.8mm)

Specificattons

Narrow Type:
0.3*1.0   0.3*1.5    0.4*1.3    0.4*1.5    0.5*1.2    0.5*1.4    0.5*1.6    0.3*1.2   0.4*1.2    0.4*1.4    0.5*1.0    0.5*1.3    0.5*1.5    0.5*1.7
Small Type:
(standard)

0.3*0.8   0.3*1.2    0.3*1.5    0.4*1.2    0.4*1.5    0.5*1.0    0.5*1.4    0.5*1.7    0.6*1.6    0.6*2.1 0.6*2.7   0.7*2.1    0.7*2.7    0.8*2.3

0.3*1.0   0.3*1.3    0.4*1.8    0.4*1.3    0.4*1.7    0.5*1.2    0.5*1.5    0.5*1.9    0.6*1.7    0.6*2.3 0.7*1.7   0.7*2.3    0.8*1.7    0.8*2.5
0.3*1.1   0.3*1.4    0.4*1.0    0.4*1.4    0.5*0.8    0.5*1.3    0.5*1.6    0.6*1.5    0.6*1.9    0.6*2.5 0.7*1.9   0.7*2.5    0.8*1.9    0.8*2.7
Big Type:
(standard)

0.6*3.0   0.7*3.2    0.8*3.2    0.8*4.0    0.8*6.0    1.0*3.5    1.0*4.5    1.0*6.0    1.2*4.5    1.2*6.0 1.4*5.0   1.6*5.0

0.6*3.2   0.8*3.0    0.8*3.5    0.8*5.0    1.0*3.0    1.0*4.0    1.0*5.0    1.2*4.0    1.2*5.0    1.4*4.0
