Product Description

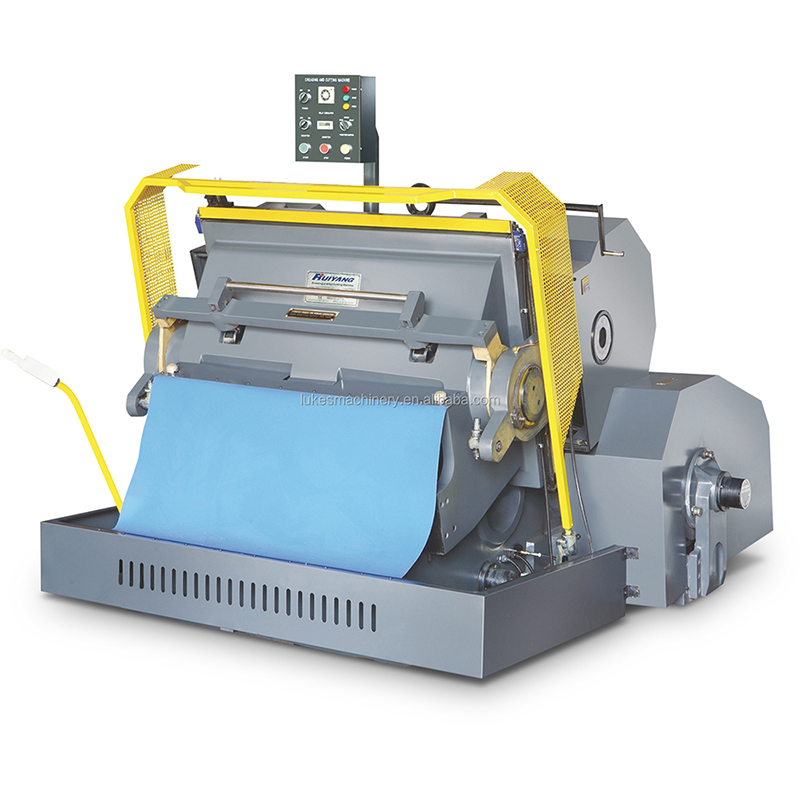

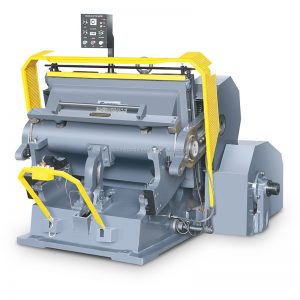

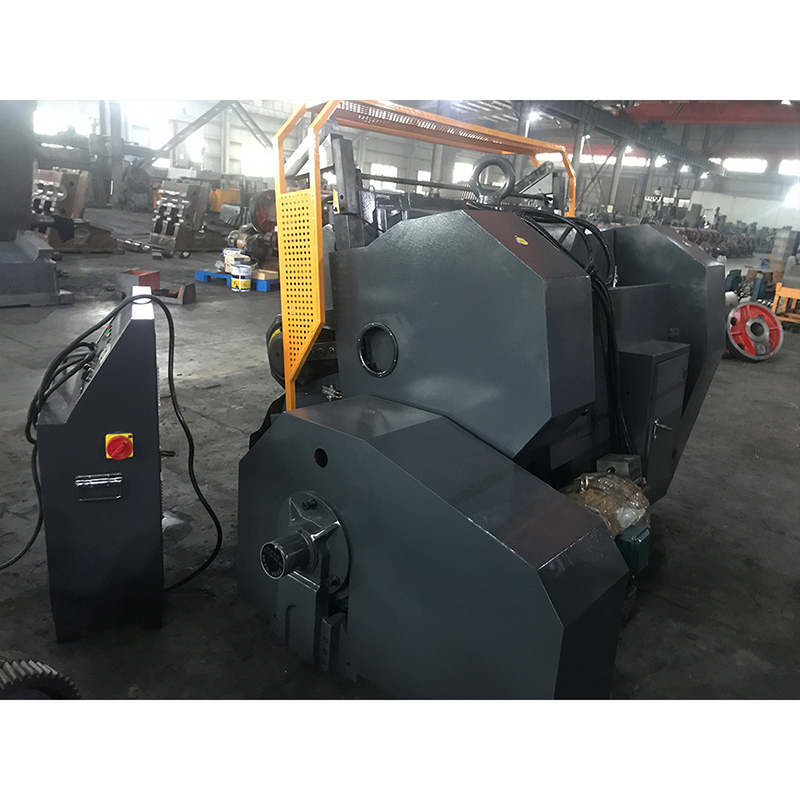

Die Cutting Creasing Machine Description:

This machine is one of popular and hot sale products in market for small quantity die punching jobs , which suit for paper board / cardboard / duplex board /craft sheet / Plastic pvc pet material for forming different shape carton based on your die mold. It has small investment cost and high return profit.

Die Cutting Creasing Machine Features:

1. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation.
2.High strength due to whole body casting with high quality material.
3. Smooth running, high pressure and low noise with 4-step helical gear mechanism.

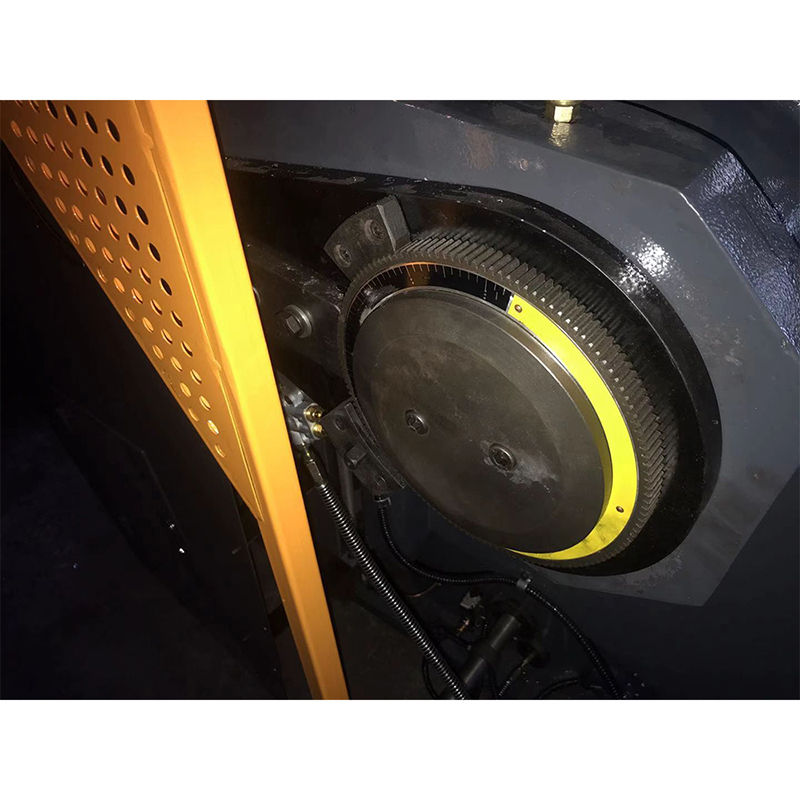

4. Single plate electromagnetic clutch is sensitive and reliable.
5. Operational altitude is reasonably arranged, moving-bed opens to its maximum.
6. Electrical system is designed in conformity with IEC standard.
7. The functions of single operation, continuous operation and opening delay are available; delay range is adjustable.

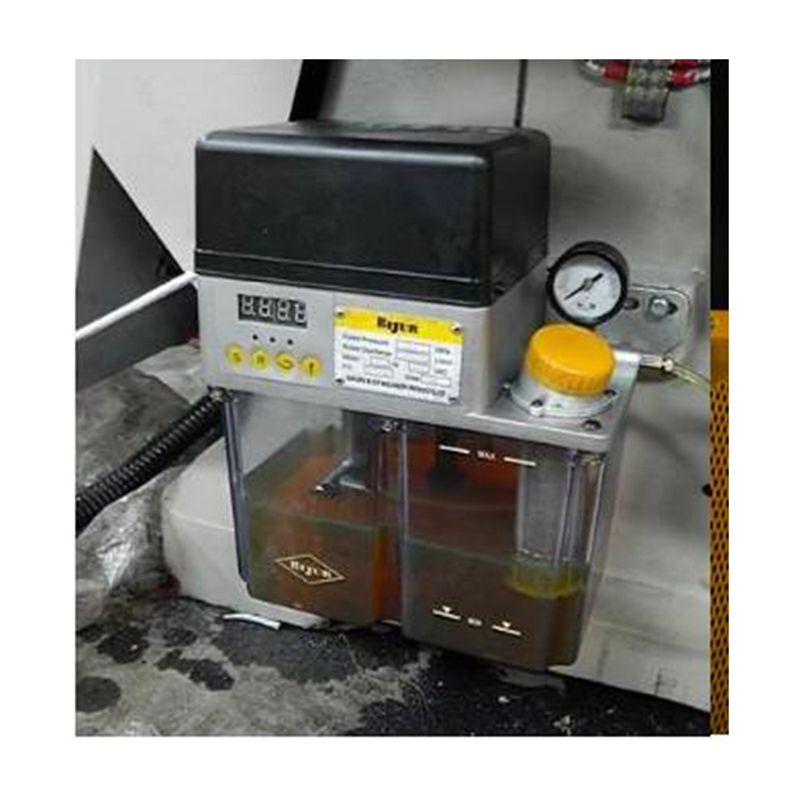

8. Reliable safety system.Concentrated lubricating system.
9. The lubrication system of centralized refueling and manual refueling (optional) can better guarantee the smooth oil path and facilitate the maintenance of the lubrication system.
10. The shaft sleeve of the transmission part adopts compound copper sleeve (to ensure lubrication) and pure copper copper sleeve of the connecting rod.Make the machine more precise.
For more information consultation: [email protected]

Die Cutting Creasing Machine

Videos

Specificattons

Model
Inner chase size
Speed
Max. rule length
Motor power
Weight
 Dimension
ML750
750X520mm
25
< 15m
2.2kw
2000kg
1650x1400x1500mm
ML930
930X670mm
23 +3
< 25
4kw
4000kg
1750x1900x1700mm
ML1040
1040x720mm
23 +3
< 28m
4kw
5000kg
2000x2010x1900mm
ML 1100
1100x800mm
22+ 3
< 35m
5.5kw
5500 kg
2000x2010x1900mm
ML 1200
1200x820mm
20 +2
< 32m
5.5kw
5900kg
2020x2020*1950mm
ML 1300
1300x920mm
15 +2
< 40m
7.5kw
6300kg
2600*2100*1950mm
ML 1400
1400x1000mm
15 +2
< 45m
7.5kw
7000kg
2600*2100*1950mm
ML 1500
1500x1050mm
14+ 2
< 45m
7.5kw
7500kg
2650*2100*2000mm
ML 1600
1600x1250mm
13 + 2
< 50m
11kw
11500kg
2850*2250*2100mm
ML 1800
1800x1400mm
13 + 2
< 60m
15 kw
13000kg
3150*2250*2250mm
ML 2000
2000x1400mm
12 +2
< 65m
15 kw
15500kg
3150*2250*2300mm
ML 2200
2200x1400mm
12 +2
< 68m
18 kw
16500kg
3300*2250*2300mm
ML 2500
2500x1500mm
12 +2
< 70m
22kw
18500kg
3600*2250*2500mm
ML 2600
2600x1500mm
12 +2
< 70m
22kw
20000kg
3700*2250*2500mm
ML 2800
2800x1500mm
12 +2
< 75m
22kw
23000kg
3900*2300*2800mm
ML 3000
3000x1600mm
12 +2
< 80m
30kw
35000kg
4200*2300*3000mm
