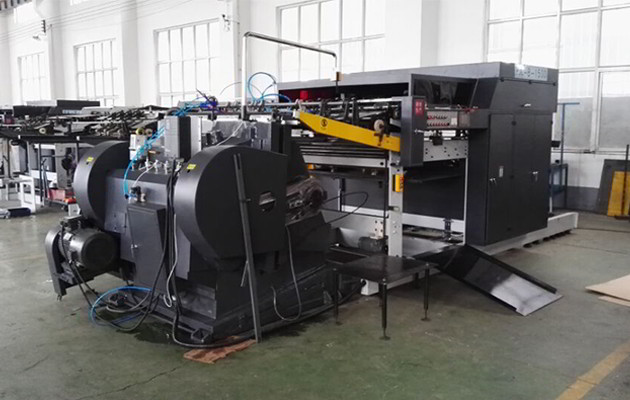

Automatic hand platens machine ( clam shell die cutter machine)

Product Description

you will be no annoyance  after find the machine if you still worry costly but want to be automatic die cutting machine

as client request we research and develop the type machine, based on manual die cutting machine to add manipulator device which can achieved automatic feeding and delivery. very safety and save labor

Components

The feeding table has device for replenish table, which can work continuously. It will not stop operation and it owns high efficiency.

The front lay and the side lay can be adjusted automatically in terms of the size of the paper. It can be adjusted easily, with high accuracy.

Using vacuum oxygen when the paper enter or be collected , which can eliminate gripper problem of the general automatic machine. It can used on common board E,B,A wave paper and plastic board

The delivery board has plate trailer, which works easily and with labor-saving. Outfit put paper counter can also be added.

With multiview electric eyes, the fault rate of the paper can be reduced. It is precise and safe, you can handle it with high proficiency.
The feeder part has track device. When you make the board , it separates freely and conveniently.

Specificattons

SPECIFICATION/MODEL



PZBC-1100
Max. cutting size

(mm)

1100×780
Min. cutting size(mm) 540×360
Thickness of cutting paper(cm) Paperboard≤8mm

Cardboard≥300g

Work efficiency(sheets/hour) 1500~2100



Total weight of machine

(kg)

7500
Dimensions

(L×W×H)mm

6000×1930×2200
