1650 Semi automatic die cutting machine with stripping

Product Description

application:

Semi automatic die cutting machine with stripping is one type of practical machine to cut and creasing different boxes. It has widely using for 350g cardboard / 300g solid board / pp hollow board / 1-9mm corrugated board .

The machine adopts manual feeding sheet , but others parts is automatic as same as fully automatic model. Manual feed type can feed different type board especially for wrapping corrugated board has much better than automatic feed. High working efficiency with costly price.

Features:

1. High working efficiency one day can die cut 30000 sheet per day / one or two shift.
2. High safety machine with 17 Photoelectric to ensure machine intelligence and safety operation.
3. It has centerline system and high precision moving plate process to ensure fast setting time and change order.
4. Very good performance to ensure low failure rate.
5. CE certification .
6. Vacuum package to ensure long time sea transport .
7. Die cutting machine core parts – base is duty heavy and rich material than other supplier in China.
8. All electrical parts and main parts adopts Germany / Japan first brand in the world.
9. Carton box creasing and die cutting machine mainly suit for offset printing box/ outside carton / flexto printing carton and beer box and transport carton etc.
10. Good and truth raw material with high precision parts processing by rich experience worker assembly.
11. Corrugated carton die -cutting machine is mainly die punching duty heavy carton making such as 3ply /5ply / 7 ply corrugated carton sheet .



Components

Feeder of corrugated die cutting machine

Various models within the range and optional feeders can be installed subject to requirements. Both pin or standard open gripper type. Suitable for solid board up to 2,000gsm and corrugated board up to 9mm

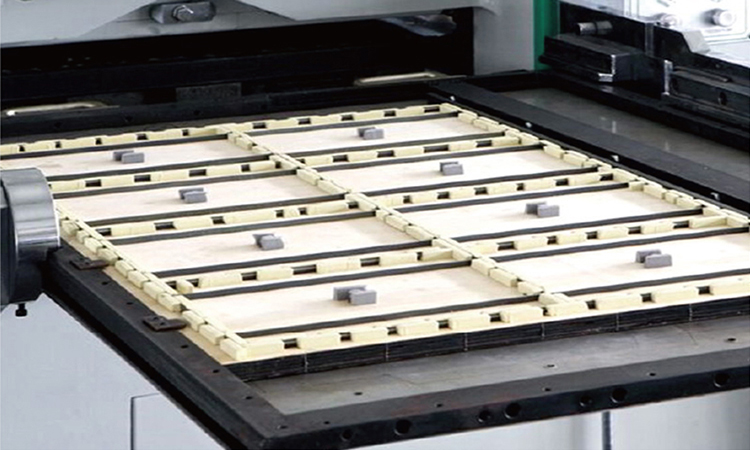

die cutting section

safety door and die chase safety locking system to ensure safe operation.

complete lost sheet control throughout the entire machine

centerline system compatible to centerline for quick change over and short set up time.

air cushion underneath the cutting plate for easy cutting plate floating in and out.

It adopts Pneumatic lock plate to ensure high working efficiency .

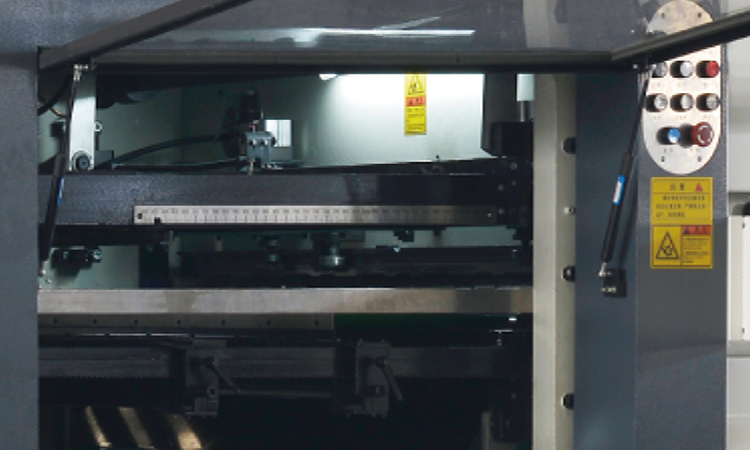

stripping section

Male and Female die can be inserted into the machine from operation side to shorten the setup time and for higher safety.

Centerline system compatible to centerline II for quick change over and short set up time

3sides and middle parts was stripped to ensure more working efficiency

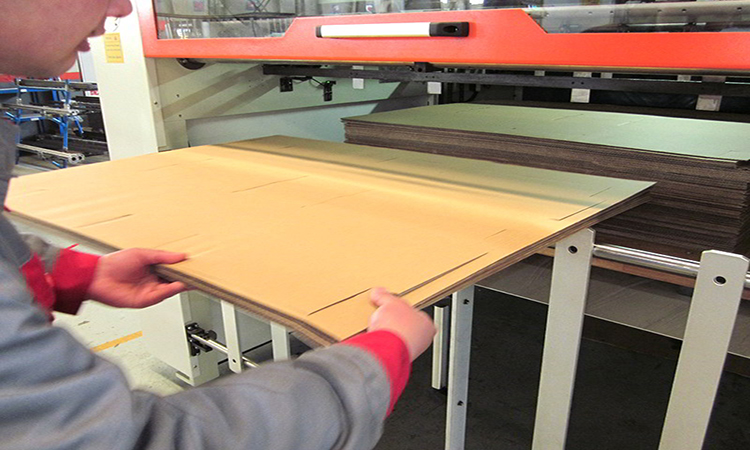

Delivery section

Pallet delivery with automatic knocking

Delivery sheets quantity can be count showing by touch screen

Collection can automatic adjustment based on the sheet quantity when working

Specificattons

Model
LKS1450
LKS1620
LKS1850
LKS2100
Max. sheet Size
1480x1080mm
1650x1210mm
1880x1420mm
2100X1500mm
Min. sheet Size
550x480mm
650x550mm
650x550mm
800x600mm
Max .Die-Cutting Size
1450x1050mm
1620x1190mm
1850x1400mm
2070x1480mm
Max. Mechanical Speed
4200s/h
4000s/h
3500s/h
3000s/h
Min. gripper waste
8&9mm
8&9mm
10mm
12mm
cutting rule height
23.8mm
23.8mm
23.8mm
23.8mm
electrical power
20.5 kw
20.5 kw
24kw
27kw
die cutting precision
± 0.5mm
± 0.5mm
± 0.5mm
± 0.5mm
Total Power
380V.50HZ, 3-Phase
380V.50HZ, 3-Phase
380V.50HZ, 3-Phase
380V.50HZ, 3-Phase
Max .Die-Cutting Pressure
300t
350t
400t
500tons
Gross Weight
17.5t
21.5t
26tons
28tons
pressure adjusting range
± 1mm
± 1mm
± 1mm
± 1mm
Stock range
corrugated board 1-8mm,cardboard 350g above
corrugated board 1-8mm,cardboard 350g above
corrugated board 1-8mm,cardboard 350g above
corrugated board 1-8mm,cardboard 350g above
Inner chase size
1480x1080mm
1646x1220mm
1890x1430mm
2110x1510mm
dimension
6330x4860x2350mm
6220x5155x2550mm
7640x5280x2600mm
8000x5800x2700mm
